On Getting Clappia in Tennessee

Editor’s Note – This essay was subsequently published as: Dillon, R.T., Jr. (2019c) On getting Clappia in Tennessee.  Pp 199 - 204 in The Freshwater Gastropods of North America Volume 3, Essays on the Prosobranchs.  FWGNA Press, Charleston.

The Powell River is one of my favorite places on Earth.  Running gently through a rich, narrow valley from southwest Virginia into East Tennessee, the Powell is home to about 17 species of freshwater gastropods, and perhaps twice that number of unionid mussels.  I first dipped a boot toe into those magical waters in the summer of 1975, as an hourly employee of the TVA working on mussel surveys, and have returned many times since.  I always see something new.

The Powell as it flows south into Tennessee is choked with pleurocerid snails – Leptoxis, Io, and three species of Pleurocera jostle each other for every square millimeter of benthic habitat.  This actually makes gathering observations on any other freshwater gastropod species extra-challenging.  As much as I love pleurocerids, I sometimes find myself wishing that they would all disappear for about an hour, so I could find anything else.

So I patted myself on the back in the summer of 2007 when I was able to confirm a population of Somatogyrus parvulus in the Powell River (marked “S” in the figure below).  Adult Somatogyrus are essentially indistinguishable from juvenile Leptoxis in the field (“L”), unless held up to close examination.  Their habitat was an important clue for me standing knee deep at midstream – I noticed a few suspicious little snails crouched Somatogyrus-like under rocks, when most of the Leptoxis population was grazing on top.

Then in 2008 I found a couple individuals of a second, more mysterious hydrobiid species in the Powell (C, below).  Again, they were mixed with a high density of Leptoxis, but this second population was more associated with woody debris in marginal pools than rocks at midstream.  Initially I thought they might be Amnicola (A), which does range through East Tennessee drainages, although not as commonly encountered as in Ohio drainages further north.  But back in the lab, they simply did not look like Amnicola.  I recorded them as “Birgella” in my database, which didn’t look right either, because the mystery snails were too small, and figured to come back to them in the future.

In 2010 I found samples of the same mysterious hydrobiid (C) at two sites in the upper Sequatchie River, another lovely mid-sized tributary of the Tennessee about 250 km SW of the Powell.  The Sequatchie also boasts a wonderfully diverse fauna of freshwater mollusks – certainly including Amnicola as well as a dense population of Leptoxis.  And again, to recover a completely vanilla 3 mm prosobranch gastropod from the waters of the Sequatchie that is neither a juvenile Leptoxis nor an Amnicola required something akin to divine intervention.  And once again, I labeled the mysterious little snails Birgella-with-a-question-mark and set them aside for future study, really rather distracted by the other 37 species of freshwater gastropods in the upper Tennessee drainage at the time.

So two years passed.  Then at the AMS meeting this past June I ran into my old buddy Bob Hershler, and he agreed to take a look at my (now three) samples of mysterious East Tennessee hydrobiid, and together we sorted the situation out.

Bob confirmed a simple, unlobed “lithoglyphine” penial morphology for the mystery populations, firmly ruling out Birgella and Amnicola, and suggested Somatogyrus.  But Somatogyrus are more heavily-shelled and found midstream – witness the population of S. parvulus in the Powell River rapids not two meters from the marginal pool favored by our mystery species. The mystery hydrobiids bear a lighter, slightly more inflated shell with an umbilicus.  A Somatogyrus with an umbilicus?  Does that ring any bells?

Last month we reviewed the life and work of Bryant Walker (1856-1936), touching at some length on Walker’s research interest in the hydrobiid genus Somatogyrus [1].  Attentive readers may recall that between 1904 and 1909 Walker described 22 species of Somatogyrus, including 21 that were indistinguishable and one that looked different.  That different one, “remarkable for its round, deep umbilicus,” Walker removed to a new genus Clappia in 1909 [2].

Clappia umbilicata was originally described from the Coosa River of Alabama, and has not subsequently been collected elsewhere.  In 1965 Bill Clench reported an additional population of Clappia inhabiting a tributary of the Coosa River perhaps 50 km west of the type locality of C. umbilicata, which he described as Clappia cahabensis, honoring the strict one-drainage-per-species rule enforced throughout the Mobile Basin [3].

But the sad fate of the Mobile Basin gastropod fauna will be well known to most of my readership [4].  Thompson based his 1984 review of the lithoglyphine hydrobiids on a museum lot of Clappia, considering C. umbilicata "apparently" extinct and opining that C. cahabensis "may also be extinct" [5].  Both species were more recently listed as extinct by Lydeard & Mayden [6] and designated as such on the IUCN Redlist.  Our colleague Stephanie Clark enjoyed 15 minutes of fame for rediscovering C. cahabensis alive back in 2005 [7].

Now it has become apparent that the range of Clappia extends well beyond Alabama, to include at least two mid-sized rivers in East Tennessee [8]. And given how lightly the freshwater gastropods of Tennessee have been surveyed, and how difficult such diminutive hydrobiids may be to find in the high densities of pleurocerids that characterize the entire region, it seems quite likely that additional Clappia populations yet remain undiscovered.

We know less about the freshwater gastropod fauna of some parts of the United States than we do about the surface of Mars.  At this writing NASA’s “Curiosity Rover” is firing laser beams at the Martian surface [9] and transmitting data through 100 million kilometers of space to rooms-full of the world’s greatest engineers, at a mission cost of $2.5 billion, delivered.  NASA scientists know what they don't know.

But it seems possible that I may be the first person ever to hold those little snails in my hand – not the juvenile Leptoxis, not the Amnicola, not the Somatogyrus, not the Birgella - the other little 3 mm snail with the vanilla shell and the vanilla penis in the organic debris in the quiet backwaters of the Powell River as it flows into East Tennessee.  Nobody knows what we don't know about North American freshwater snails.

I do not begrudge NASA its $2.5 billion budget [10].  I would simply like to point out that we do not need to travel 100 million km to dip our boot toes into the magical waters of the unknown.

Notes

[1] Bryant Walker's Sense of Fairness [9Nov12]

[2] Walker, B.  (1909)  New Amnicolidae from Alabama.  Nautilus 22: 85-90.

[3] Clench, W. J. (1965)  A new species of Clappia from Alabama.  Nautilus 79: 33-34.  The primary difference between Walker's C. umbilicata and Clench's C. cahabensis seems to be body color, black for the former and white for the latter.  The mantles of the Tennessee populations do (generally) seem to bear black pigmentation.

[4]  For references on the conservation status of the Mobile Basin gastropod fauna see:

• Influential publications in freshwater gastropod conservation [3May10]
• Mobile Basin I: Two pleurocerids proposed for listing [24Aug09]

[5]  Thompson, F. G. (1984)  North American freshwater snail genera of the hydrobiid subfamily Lithoglyphinae.  Malacologia 25: 109-141.

[6] Lydeard, C & R. L. Mayden (1995) A diverse and endangered aquatic ecosystem of the southeast United States.  Conservation Biology 9: 800-805.

[7] Ivory-billed Freshwater Gastropods [9May05]

[8] A distribution map is available from the new Clappia umbilicata page on the FWGNA site: [Clappia umbilicata]

[9] Since 1898 there has been a narrative in western culture featuring an invasion by Martians, often involving robotic landers and death rays.  So now it materializes that NASA has mounted a laser gun on our most recent Martian Rover.  Apparently we kicked all the Nazi ass we can find, and kicked all the Commie ass we can find, and now we're up in space, kicking little green Martian ass.  USA! USA!

[10] This is because I cannot imagine any scenario where the subtraction of a single dollar from the NASA budget might yield even a penny for any funding source to which I might conceivably apply.  I don't understand money, at all.  But I think that funding for space research may be motivated by a combination of national pride, military paranoia, and Buck Rogers romanticism.  Although NASA takes the money and does some science with it (among other things), NASA's appeal is not primarily, or secondarily, or even tertiarily scientific.  But I do not understand money, at all.

Bryant Walker's Sense of Fairness

Editor’s Note – This essay was subsequently published as: Dillon, R.T., Jr. (2019c) Bryant Walker's sense of fairness.  Pp 191 - 198 in The Freshwater Gastropods of North America Volume 3, Essays on the Prosobranchs.  FWGNA Press, Charleston.

Bryant Walker was a lawyer.  It is difficult for us to comprehend, looking back on his distinguished career in malacology, which extended over 50 years and 155 publications, that he never held a formal position at any scholarly institution.  And that the second word under Walker’s entry in R. Tucker Abbott’s Directory of American Malacologists [1], after the word lawyer, is “amateur.”

He was born in Detroit in 1856 and died in Detroit in 1936, and will ever be linked most closely with his alma mater, the University of Michigan.  Indeed 25 of Walker’s 155 publications were regional surveys – directed toward the molluscan fauna of the Wolverine State [2].  But he corresponded widely throughout North America, developing especially close friendships with Ortmann in Pittsburgh, Pilsbry in Philadelphia, and such prominent collectors as J. H. Ferriss, A. A. Hinkley, and H. H. Smith.  And he became an international authority on freshwater limpets, publishing important contributions on the ancylids of South America and Africa, as well as revising our own continental fauna here at home [3].

According to Calvin Goodrich [4, 5], whom he recruited to the University of Michigan in 1929, the first entry in Walker’s personal catalog of shells was “made in the back part of a university notebook on physics” in 1874, while he was yet an undergraduate.  He published his first paper in the year of his graduation from Michigan with an A. B. in 1876, and his second paper the year he graduated from the Michigan Law School in 1879.  Thereafter he entered private practice as an attorney in Detroit, turning his “three-storied, high ceilinged, mansard-roofed house” into a museum, “the ground floor dedicated to gastropods, the upper to bivalves.”  Again according to Goodrich, “When the collection was moved in June [of 1936] to the University of Michigan at Ann Arbor, a great pile of boxed shells was discovered in the attic rooms, others on shelves in the basement where some were partly buried under coal.”

Walker’s research interests favored the freshwater gastropods (56 papers), but did not neglect the unionid mussels (29 papers).  In his day he was probably best known for the “Mollusca” chapter he contributed to the first (1918) edition of Ward & Whipple’s influential “Freshwater Biology.”  He expanded that work into a stand-alone “Synopsis of the Classification of the Freshwater Mollusca of North America,” augmented it with “A catalog of the more recently described species, with notes,” and published it as a 213-page “Miscellaneous Publication” of the University of Michigan [6].

I keep a reprint of Walker’s 1918 “Miscellaneous Publication” on the shelf next to my desk, and refer to it often.  The work grew from an extensive system of note cards that he compiled for his personal use over many years, recording not just the descriptions of new species as they were published, but indeed any note or comment regarding any species of North American freshwater mollusk to appear in the literature over several decades.  In cases such as the Physidae, where no monographic treatment was published between Binney’s of 1865 and George Te’s of 1975, Walker’s “Miscellaneous Publication” provides an indispensable bridge from the ancient to the merely old.

Bryant Walker had a lawyer’s sense of fairness.  As the 20^th century dawned, the larger and showier freshwater gastropods, such as the lymnaeids, the planorbids, and especially the pleurocerids, had all received more than their fair share of attention.  Thus he focused his research efforts on the smaller and plainer taxa – the hydrobiids, the valvatids, and especially the ancylid limpets.

Among the hydrobiids, the plainest genus is arguably Somatogyrus, which bears a relatively heavy but otherwise nondescript shell and a simple penis.  All the other hydrobiid groups – the Amnicolines, the Nymphophilines, the Fontigentines – have an elaborate penial morphology with accessory lobes and glandular crests and extra ducts and were already, by Walker’s day, split into scores of regional species.  It did not seem fair to Walker that there should be dozens of species of Amnicola in New England, and hundreds of species of pleurocerids in Alabama, but just four species of Somatogyrus, simply because they were so plain.

So in 1904 he described 11 new species of Somatogyrus, including the regional taxa S. pennsylvanicus, S. virginicus, and S. georgianus, as well as 8 species from the Mobile Basin of Alabama [7].  And between 1906 and 1915 he described 14 additional species, most from the Tennessee River and its tributaries in North Alabama [8, 9, 10].

Almost all 25 of these species were, quite plainly speaking, indistinguishable.  Walker described the shell of Somatogyrus virginicus, for example, as “small, globosely conic, and imperforate,” and that of S. pennsylvanicus as “small, obtusely conic, narrowly umbilicate, sometimes imperforate [7].”  The only exception was his Somatogyrus umbilicatus from the Coosa River of Alabama, about which Walker enthused, “This species is remarkable for its depressed, valvata-like form and round, deep umbilicus, which readily differentiates it from all other known species of the genus.”

By 1909 it was beginning to seem unfair to Walker that the genus Somatogyrus should include 21 indistinguishable species (by that point, see note 11) and one that looked different.  So he removed his S. umbilicatus to a separate genus, Clappia, and redescribed it as Clappia clappi, to doubly-ingratiate himself with G. H. Clapp, then curator of mollusks at Harvard’s MCZ [Plate above, see ref 9].  The genus remains valid to this day, although the specific nomen “clappi” was dead aborning [12].

It was Calvin Goodrich’s opinion, however, that Walker’s 25 papers on the Ancylidae “will probably stand as his best work.”  While essentially all of the 16 species-level ancylid taxa he described from North American waters have now disappeared into synonymy [13], Walker's genera Ferrissia, Laevapex, and Rhodacmea survive to this day, albeit with approximately one species each [14].

But with the advantage of 100 years’ perspective, I would suggest that Bryant Walker’s best work was “Malacology at the University of Michigan.”  If there was any interest in mollusks at Ann Arbor prior to Walker, I can find no evidence of it [15].  But after Walker came Goodrich [5], and after Goodrich came van der Schalie, and under van der Schalie trained W. J. Clench, A. R. Solem, P. F. Basch, J. B. Burch, W. H. Heard, and many, many others, including (full disclosure) my own Ph.D. advisor, G. M. Davis.

Absent the Malacology Department at the UMMZ, the landscape of our discipline in America today would present a far more desolate aspect.  Although I have never seen him accorded the honor, let’s bestow upon Mr. Bryant Walker, lawyer, amateur, the title “Father of Malacology at Michigan,” shall we?  It’s only fair.

Notes

[1] Abbot, R. T. (1973)  American Malacologists.  Published by the author, Falls Church, Va.

[2] Goodrich, C. (1939) The scientific writings of Bryant Walker.  An annotated bibliography.  Occas. Pprs. Mus. Zool. Univ. Mich. 402: 1 - 28. This is also the source of the Walker portrait accompanying the post.

[3] Walker, B. (1917)  A revision of the classification of the North American patelliform Ancylidae, with descriptions of new species.  Nautilus 31: 1 - 10.

[4]  All the anecdotes in paragraph three of this essay come from a very sweet and personal obituary published by Goodrich (1936) in Nautilus 50: 59-64.

[5] Calvin Goodrich ranks very high on my list of professional heros, just behind Darwin, Mendel, and Morgan.  For my personal tribute, see:

• The Legacy of Calvin Goodrich [23Jan07]

[6] Walker, B. (1918)  A synopsis of the classification of the freshwater Mollusca of North America, North of Mexico, and a catalogue of the more recently described species, with notes.  Univ. Mich. Mus. Zool. Misc. Publ. 6: 1 - 213.

[7]  Walker, B. (1904)  New species of Somatogyrus.  Nautilus 17: 133 - 142.

[8] Walker. B. (1906)  New and little known species of Amnicolidae.  Nautilus 19: 97-100, 114-117.

[9] Walker, B. (1909)  New Amnicolidae from Alabama.  Nautilus 22: 85 - 90.  Walker's "Plate VI" shows Clappia "clappi" shell (1), operculum (4), and radula (7), along with various other Somatogyrus from Alabama.

[10] Walker, B. (1915) Apical characters in Somatogyrus with descriptions of three new species.  The Nautilus 29: 37 - 41, 49 - 53.

[11] Actually there were approximately 30 species of Somatogyrus by 1909, including 8 described by authors prior to Walker.

[12] The specific nomen "clappi" (Walker 1909) immediately became a junior synonym of umbilicata (Walker 1904).  How did the great H. A. Pilsbry, who edited The Nautilus from 1889 to 1958, let Walker make the rookie mistake of naming the same species twice?

[13] The only exception may be Rhodacmaea hinkleyi (Walker 1908), which even if it is distinct, is probably extinct.

[14] I have posted updates on all three of these genera in recent years:

• Phylogenetic sporting and the genus Laevapex [20July07]
• Two species of Ferrissia [8Dec10]
• Rhodacmaea Ridotto [8Aug11]

[15] The first curator of malacology at the University of Michigan was Miss Mina Winslow, whom Walker had some hand in “encouraging” to the job, according to van der Schalie (Bulletin of the AMU 1980: 1 – 5).  I cannot discover when Miss Winslow actually assumed her position, but the date of her first “Occasional Paper” was 1917, a couple years after Walker’s first.

The Most Improbable Invasion?

Editor’s Note – This essay was subsequently published as: Dillon, R.T., Jr. (2019d)  The most improbable invasion?  Pp 33 - 40 in The Freshwater Gastropods of North America Volume 4, essays on Ecology and Biogeography.  FWGNA Press, Charleston.

I've just returned from southeastern Pennsylvania, where I have seen, with my own eyes, the most improbable invasion in the history of malacology.  I think.  But before diving into the specifics, let’s review what we know about the biology of invasive species, shall we?

Invasive species are typically adapted to exploit rich, transient habitat patches.  They demonstrate “weedy” life history traits, for example high reproductive efforts (relative to body mass), short generation times, and semelparity.  And they also typically display special adaptations for dispersal, such as the production of propagules capable of long distance transport, and asexual reproduction.

All this has been a staple of the ecological literature at least since the days of Robert MacArthur’s “r and K selection” [1].  I myself developed a “USR” model of life history adaptation for my (2000) book, extending MacArthur’s two points to three, inspired by the triangular theory of J. P. Grime [2].  The most recent review of the biology of invasive species, from a malacological perspective, is that of Cowie and colleagues [3].

But no matter how you slice life histories, two ways or three, Pleurocera proxima must be the most unlikely invader in the entire North American freshwater gastropod fauna.  Populations of P. proxima are adapted to small, isolated, softwater streams of the southern Appalachians and upper Piedmont – harsh and poor in nutrients, but stable and predictable.  Females demonstrate very low reproductive efforts relative to their body mass, laying small numbers of small eggs annually, but are long-lived (perhaps ten years?) and iteroparous.

The dispersal capability of P. proxima is so poor that significant gene frequency differences have been documented over distances of only a few meters [4].  Populations simply do not move, and may not have moved for hundreds of millions of years [5]. When I first conceived of the USR model of life history evolution in freshwater mollusks, it was P. proxima I had in mind as the archetypical “S” species – a stress tolerator, the 180-degree opposite [6] of an “R.”  It’s a cactus, not a weed.

So I was shocked – as shocked as a snail guy can be – when I opened an email from Dr. Willy Eldridge of the Stroud Water Research Center in December of 2010.  The Stroud Lab is located in rural Avondale, PA, on a small tributary of the Delaware River called White Clay Creek.  And attached to Willy’s email was a photo of P. proxima.

I have dedicated much of my professional career to the study of P. proxima [7], logging thousands of miles on the back roads of the southern Appalachians to map its distribution.  And I knew, for an absolute fact, that the northernmost population of P. proxima reaches a tributary of the Roanoke River just south of Lynchburg, in central Virginia [8].  Here was a photo of my snail – the study organism for my dissertation, the coverboy of my book – snapped 400 km northeast of anywhere it could possibly be.

So it took me almost two years, but last month I sojourned to Pennsylvania to see this thing which has come to pass.  The population Willy showed me near the Stroud Lab [right] does not inhabit White Clay Creek itself, but rather a tiny tributary – a groundwater trickle – not a meter across.  And Willy reported that in the last couple years he has documented nine additional populations in similar little trickles, extending across 20 km of southeastern Pennsylvania through three tributaries of the Delaware – White Clay Creek, Red Clay Creek, and the Brandywine River.

My initial reaction was that it looked as though a 15 x 20 km rectangle of North Carolina had been transported three states north.  If anything, Willy’s ten Pennsylvania populations seemed even more isolated than typical P. proxima populations in the home range.  If this were North Carolina, I would have found a population in the (main) White Clay Creek, a couple hundred meters downstream from the trickle where the photo above was taken.  But I did not.

So Willy’s hypothesis is not that he has discovered an artificial introduction, but that he has discovered a natural extension of the range of P. proxima, however subsequently fragmented it may have become. Willy thinks that the absence of the snails from White Clay Creek (and 150 km of Maryland, and 250 km of Virginia?) may be due to road salt and other modern perturbations and disturbances.  Perhaps harsh agricultural practices over the last couple hundred years throughout the region? Or perhaps something bigger, over the last couple hundred million?  Hmmm.

I blame the DuPonts.  Nestled in the green, rolling hills approximately 10 km east of the Stroud Lab is Longwood Gardens, the estate of Pierre DuPont (1870-1954).  DuPont purchased the 1,077-acre property in 1906 [9] and over the course of thirty years developed a lavish horticultural complex of greenhouses, conservatories, gardens and farms, which he opened to the public on a regular basis.  And in his will he established the Longwood Foundation Inc, a charitable organization which continues to administer the grounds today as a public arboretum for “exhibition, instruction, education and enjoyment.”

Longwood Gardens is especially renowned for its fountains, pools, canals, and elaborately engineered water features.  As early as 1876, DuPont was “mesmerized by the huge display of water pumps in action at the Philadelphia Centennial Exposition,” and in 1893 he was “astounded” by the grandiose fountains at the Worlds Columbian Exposition in Chicago [10].  At Longwood he oversaw the construction of lavish “water gardens” which he seems to have stocked with a variety of aquatic vegetation from around the world.  I don’t actually understand the plumbing of the system, but I suspect that DuPont’s water works may bridge both the Brandywine River and Red Clay Creek.

Did Pierre DuPont import aquatic vegetation, rock, or other substrate from some stream in the southern Appalachians or upper Piedmont to stock his elaborate water gardens?  If so, how might P. proxima have spread from a Longwood focus, even if it does bridge the Brandywine and Red Clay systems, to the little tributary of White Clay Creek 10 km west where I snapped Willy’s photo last week, skipping (as it apparently has) a great many perfectly suitable little streams in between?  I do not know.

But I do know that the most important predictor of success in an invasive species is none of those I listed in the second paragraph of this essay.  Invasive species must be different.  Successful invaders exploit different resources, inhabit different habitat patches, and conduct their ecological business in a different fashion from native species.  And indeed all the successful invaders of the modern North American freshwater gastropod fauna - Pomacea, Bellamya, Viviparus, Bithynia, and Potamopyrgus – look strikingly different from any element of our native community, just as Corbicula and Dreissena look strikingly different from our native freshwater bivalves.  There are no cryptic invasions [11].

All of the life history adaptations I listed in paragraph two apply to species naturally adapted as invaders, which (as a general rule) they are always doing, naturally.  So focusing (as we are) on artificial introductions, the most important criterion for success becomes competitive ability – whether a potential invader is ecologically different enough to find an “empty niche” it can exploit upon its unexpected arrival [12].  And Pleurocera proxima is most certainly different from any other element of the freshwater gastropod fauna in southeastern Pennsylvania.  Or most of the world, actually.

Or perhaps Willy is right, and P. proxima is native to southeastern Pennsylvania?  And my paragraph two is complete as it stands, and the last five paragraphs I’ve written are wrong?  Willy tells me that he’s collecting genetic data that he expects will shed some light on this fascinating question.  We’ll keep you posted.

Notes

[1] MacArthur, R. H. (1962)  Some generalized theorems of natural selection.  PNAS (USA) 48: 1893-1897.  For a modern review, see Reznick, Bryant & Bashey (2002) r- and K-selection revisited: The role of population regulation in life-history evolution.  Ecology 83: 1509-1520.

[2] Dillon, R. T. (2000) The Ecology of Freshwater Molluscs.  Cambridge University Press.  See especially Chapter 4 (pp 131-136) and Chapter 8 (pp 354-364).  [Book site]

[3] Cowie, R. H., R. T. Dillon, D. G. Robinson & J. W. Smith (2009)  Alien non-marine snails and slugs of priority quarantine importance in the United States: A preliminary risk assessment.  Amer. Malac. Bull. 27: 113-132. [pdf]

[4] Dillon, R.T. (1988) The influence of minor human disturbance on biochemical variation in a population of freshwater snails. Biological Conservation 43: 137-144  [pdf]

[5] See “The Snails The Dinosaurs Saw” [16Mar09]

[6] Although Grime’s CSR model of life history evolution in plants was (quite literally) triangular, my USR model put U in the middle between S and R.  Hence there’s a full 180 degrees between S and R, not a mere 120.

[7] See my P. proxima page on the FWGNA site for the (N=16!) papers my colleagues and I have published on this fascinating species over the last 35 years.  [Pleurocera proxima]

[8] Setting aside the populations I myself introduced into a tributary of the Shenandoah in 1982.  See Dillon, R.T. (1986) Inheritance of isozyme phenotype at three loci in the freshwater snail, Goniobasis proxima: Mother-offspring analysis and an artificial introduction. Biochemical Genetics 24: 281-290.  [pdf]

[9] To be fair, the estate was originally developed as an arboretum by John and Samual Pierce as early as 1798.  By 1850 the Pierce brothers had “amassed one of the finest collections of trees in the nation” according to Wikipedia, and the property was already open to the public as “Pierces Park.”  So I suppose the introduction of exotic fauna (such as P. proxima) along with the flora might predate the DuPont era.

[10] I got most of this historical background from the (really quite lovely) Longwood Gardens website.

[11] Although invaders are never cryptic under native faunas, they are often cryptic among themselves.  So there are two more-or-less cryptic species of Asian Bellamya in North America, and two South American Pomacea, and two Eurasian Dreissena, and two east Asian Corbicula.  I think this tends to support my point, but I’m not sure how.

[12] This is the third time I have confessed an embarrassing predilection for the “empty niche hypothesis” on this blog.  Also see:

"Invaders Great and Small"  [19Sept08]

"Community Consequences of Bellamya Invasion"  [18Dec09]

When worlds collide: Lumpers and splitters

Apparently I have the reputation of being a “lumper.”  The subject came up last month when I was visiting my friend Tim Pearce, curator of mollusks at the Carnegie Museum in Pittsburgh.  Tim asked me a question, which was not actually in the form of a question, but rather phrased as a “philosophy of classification,” upon which he invited me to comment. Tim’s proposition was as follows:

In the face of uncertainty, it is better to split than to lump.  Because if additional information subsequently becomes available suggesting that two taxa you have split should have been lumped, it will be trivially easy to lump them.  But if additional information becomes available suggesting that two taxa you have lumped should have been split, your entire data set may have been ruined, because information has been lost.

My first response to Tim was that I’ve never been in such a position.  And my second response was that I could not imagine how such a situation could ever exist.

Is our ignorance complete and our uncertainty absolute, such that we have no existing taxonomy to guide us, no reference works of any sort to fall back on, nor any data to point us in one direction or the other?  And is somebody now holding a pistol to our heads, forcing us to make our decision?  We can’t simply leave the organisms unclassified?

The situation seems to be that we have been transported in shackles to Brazil, and made to classify beetles for our supper, without a guidebook.  I actually could not make my mind address Tim’s premise.

And then it occurred to me that Tim had phrased his proposition not as a question of science, but as a “philosophy of classification."  And it dawned on me that he and I were speaking different languages.

At dinner that evening Tim and I sorted the situation out.  As a museum curator, Tim spends most of his professional life with what we resolved to call a “Worldview of Information.”  He shares this worldview with print publishers, almost everybody involved in the (rapidly becoming omnipresent) internet, and anybody who may be left in the (rapidly becoming obsolescent) library.  Tim’s primary focus is not on the production of information, but on its management, organization, storage, and retrieval.

I spend most of my professional life with a Worldview of Science.  Science is the construction of testable models about the natural world.  The Worldview of Science is not incompatible with that of Information, of course.  When I publish a new hypothesis, or gather data supporting an existing hypothesis, I create information.  But Science is not compatible with an Information Worldview, either.  Because I focus on the quality of a model – old or new, good or bad – with no regard whatsoever for the organization, storage or retrieval of the information that will be generated as a byproduct.

The existence of parallel worldviews, each with its own language, culture, values and assumptions, has been a recurring theme on this blog for quite a few years now.  Most often I have contrasted the Worldview of Science with that of Politics and Public Policy – hit the “Science and Public Policy” tag at right for more [1].  I also posted one essay (back in February, 2011) contrasting Science with the Worldview of Art [2].

Religious faith is another obvious example of a parallel worldview.  I have a great deal of experience in the relationship between Science and Religion, although I have not published on this blog about the subject.  In other fora [3] I have compared that relationship to playing baseball and playing the banjo - neither more valid or more true, neither better nor worse, not incompatible, but not compatible, either.  Simply, profoundly different.

Subatomic particles are too small to see, but physicists can tell they are there when they run into each other.  The various Worldviews I have catalogued above – Art, Science, Politics, Religion and Information – are too big to see.  But one can tell they are there when they run into each other.

I have long derived embarrassing levels of schadenfreude from the Creation/Evolution controversy because I enjoy watching at least three [4] worlds collide - Science, Faith, and Politics.  Sitting in a meeting of the Senate Education Committee hearing testimony on creationist legislation we can watch baseball teams and bluegrass bands trying to drive nails with banjos and catcher's mitts, before a crew of carpenters.  I find this intellectually fascinating.

Science and Religion can collect Information into a three-world collision as well.  A google search on the keyword "evolution," for example, will return a steaming bouillabaisse of Science and Religion mingled in baffling fashion.  My good friend Kelly Smith from the Philosophy Department at Clemson has recently indicted the Information community for aiding and abetting Religion in its ongoing attacks on Science [5].

But the first commandment in Tim’s worldview is this: "Thou Shalt Not Lose Thy Information."  So seen in that light, his question about lumping and splitting put me in the position of a heathen, standing before the Spanish Inquisition.  Who could have expected that?

And my first commandment is this: "Thy Model Shalt be the Best."  As a scientist, I am horrified not simply by the quality of the information on “Wikipedia,” but indeed by the very concept of open publication itself [6].  I've spent a lot of time working with the NCBI GenBank in recent months, for example, and it turns out they will let any bonehead upload any string of the characters A, T, G, and C and call it anything.  The NCBI online resource may be dressed up like Science, but it is no more scientific than the B-Minor Mass.  And I don’t much care for Bach.

Ian Barbour

We'd all probably agree that worldview conflicts, whether they take the form of monkey trials, endangered species panels, or just prickly little interactions between museum curators and evolutionary biologists, are a bad thing.  But are they unavoidable?

My favorite treatment of worldview collision is that of the distinguished philosopher Ian Barbour [7].  Barbour's work specifically addresses the relationship between Science and Religion, but his ideas will generally apply to the relationship between Science and Public Policy, or Science and Information, for that matter.  In addition to conflict, Barbour has proposed three other forms of worldview interaction: independence, dialogue, and integration.

Independence is the model that Steven J. Gould famously called "Nonoverlapping Magisteria [8]."  And independence does indeed describe the actual relationship between baseball teams and bluegrass bands quite accurately.  Nobody has ever tried to bring a banjo into the batter's box, as far as I know.

All of the problems I have outlined above, however, arise from the intellectual appeal of integration.  Preachers do in fact propose science from their pulpits, and scientists do in fact propose public policy in their seminars, metaphorically carrying their banjos into batter’s boxes with the regularity of the tides.  In such situations, the only alternative to conflict is dialogue.

The first steps toward peace between two peoples are taken when those peoples begin to understand that they are, in fact, two peoples.  So I welcomed the dialogue Tim and I had in Pittsburgh last month, and do hope it will continue.  I am more than happy to let colleagues from the Worldview of Information handle all matters of data flow, storage, and retrieval.  We should be pleased if they would leave the Science to scientists.

Notes

[1]  Worldview collision is most explicitly addressed here:

Idaho Springsnail Panel Report [23Dec05]

When Pigs Fly in Idaho [30Jan06]

Red Flags, Water Resources, and Physa natricina [12Mar08]

Mobile Basin IV: Goniobasis WTFs [13Nov09]

[2]  When Art and Science Collide [4Feb11]

[3]  Only for those of you who can speak (or at least read) Religion!

• Dillon, R. T. (2008)  Stonewall, Woodrow, and Me: Reflections on the other great commission.  SciTech, The journal of the Presbyterian Association on Science, Technology, and the Christian Faith 17(3): 7 - 9. [pdf]
• Dillon, R. T. (2011) Charles Darwin and Theodicy.  (A celebrity death match between Rob Dillon and Francisco Ayala!)  SciTech, The journal of the Presbyterian Association on Science, Technology, and the Christian Faith 20(1): 1-3.  [pdf]
• Dillon, R. T. (2012)  Science and the Christian Religion: A Sermon in Three Acts.  Preached at Circular Congregational Church, Charleston, SC.  February 12, 2012. [pdf]

[4] I see three worlds colliding because I can understand their three languages.  I am fluent in both Science and Religion, and speak some Politics.  The Worldview of Education is also always represented in the constituency at hearings on creationist legislation, although silently.  On rare occasions somebody seems to attempt a pidgin form of Business and Commerce (“A rigorous science curriculum is necessary to advance South Carolina’s competitiveness.”)  But I don't speak any Money at all.

[5] Smith, Kelly C. (2012)  I Also Survived a Debate with a Creationist (with Reflections on the Perils of Democratic Information).  Reports of the National Center for Science Education 32(2): 6.  [pdf]

[6] The irony of publishing this statement in a blog post does not escape me.

[7] Barbour got his Ph.D. in Physics from Chicago in 1950, swapping over for a B.Div.

The Lymnaeidae 2012: Fossarine Football

Editor's Note.  This essay was subsequently published as Dillon, R.T., Jr. (2019b)  The Lymnaeidae 2012: Fossarine football.  Pp 57-66 in The Freshwater Gastropods of North America Volume 2, Essays on the Pulmonates.  FWGNA Press, Charleston.

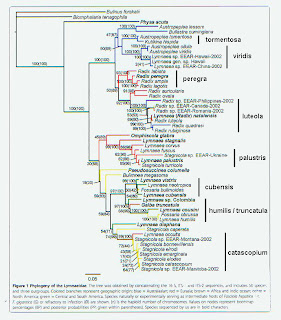

In June we reviewed the 2010 paper by Ana Correa and her colleagues synthesizing 15 years of effort (by several independent research groups) to develop gene trees for the Family Lymnaeidae [1].  Reasoning from known levels of interpopulation divergence in Lymnaea stagnalis, it appeared to us that approximately 5% sequence divergence may be expected among conspecific lymnaeid populations sharing the same continent, and 10% between continents.  By that "stagnalis yardstick," the gene tree of Correa seemed to evince approximately 19 species worldwide.  That's approximately what Bengt Hubendick would have suggested in 1951 [2].

Correa and her colleagues were not, however, primarily motivated by an academic interest in the evolution of the Lymnaeidae.  Their explicit motive was to develop a "phylogenetic framework" upon which to "analyze how susceptibility to infection by Fasciola hepatica and F. gigantica has evolved [3]."  Liver flukes of the genus Fasciola cause significant losses of livestock worldwide, and (especially in Latin America) may be sporadically recorded in human populations as well.

And so we should not be surprised that Correa and colleagues followed their 2010 study with a second study published in 2011 [4], focusing on the neotropical lymnaeid fauna, almost all of which are what we here in temperate North America traditionally call "fossarines."

The fossarines are small-bodied lymnaeids typically found living amphibiously at the edges of ditches, ponds, and quiet backwaters.  They are common inhabitants of wet pastures and the trampled margins of riverbanks where livestock come to water, and as such have become the most important hosts of fascioliasis.  Click the figure above and spot the deer hoof print [5].

European populations of this type are usually identified simply as "Galba" truncatula.  But here in North America their taxonomy is much messier.  The Burch/Baker system [6] lists approximately 12 species of "Fossaria" in two subgenera, the bicuspid subgenus "Bakerilymnaea" with cubensis, bulimoides, and several others, and the tricuspid subgenus "Fossaria s.s." with humilis, modicella, parva, obrussa, and several others, including truncatula from Europe.  Hubendick lumped all our North American tricuspid nomina under humilis, keeping two names for our bicuspid populations: cubensis in the east and bulimoides in the west.  He also admitted truncatula to the North American fauna, extending only through Alaska and a bit of Canada.

In South America Hubendick recognized viator (which he found difficult to distinguish from cubensis), cousini, and pictonica, a nomen that seems to have become lost.  But in contrast to the situation in temperate North America, the taxonomy of the South and Central American Lymnaeidae has not remained on ice for 30 years.  Rather, the availability of funding for fascioliasis research in the tropics has led to the description of a welter of new species, including neotropica, shirazensis, and meridensis, which have been added to the older nomina cubensis, viator/viatrix, cousini, and truncatula as well.

In recent years a malacological football match seems to have developed between French and Spanish teams working on the systematics of these little critters.  And in the spirit of full disclosure, I should confess that I have not spent the entire game on the sidelines.  In 2008 I was contacted by Prof. Dr. S. Mas-Coma (Universidad de Valencia) to furnish topotypic L. humilis for sequencing work, which led to my post of 25June08 [7] informally "restricting" the type locality of L. humilis to Owego, New York.  Ultimately I sent Dr. Mas-Coma samples of both Charleston cubensis and L. humilis from Owego.  And in 2009 I sent samples of Charleston cubensis to Dr. Philippe Jarne (CNRS Montpellier) as well [8].

So just as we asked in June for Correa's 2010 paper, we might reasonably ask today for Correa's paper of 2011.  Do we know enough about the biology of the little fossarine lymnaeids to make any sense of all the sequence data that have accumulated in recent years?  The quick answer is, no.  If you've stumbled onto this essay looking for any actual enlightenment regarding the systematics or evolution of the Lymnaeidae, quit now.

Those of you still with me may recall that my June application of our "stagnalis yardstick" to the fossarine branch of Correa's 2010 gene tree returned two groups, which I labeled with three Hubendick-era names, the bicuspid "cubensis" and the tricuspid "humilis/truncatula."  Does that fossarine branch comprise three genuinely distinct taxa, two, or one?  Let's fish topotypic CO1 sequences out of GenBank for these three old, well-established specific nomina, BLAST them against the entire NCBI nucleotide database, apply our stagnalis yardstick, and see.  And we might as well see where all those other (primarily neotropical) taxa fall as well, while we're at it.

For Lymnaea cubensis I used AM49009, collected from Cuba and sequenced by Bargues et al [9].  For L. humilis I used FN182197, collected by myself from the (newly restricted) type locality at Owego, New York, and also sequenced in the Bargues / Mas-Coma lab [10]. For L. truncatula I used EU818799, collected from Germany [11] and sequenced by Albrecht and colleagues [12].  I then ran simple BLAST searches from each of those three topotypic sequences and noted percent sequence divergence across the entire set of matches returned as "significant" by the search tool.  The results are shown graphically in the figure below.

Using truncatula as a query sequence, the BLAST search returned 14 sequences in the 96-100% similarity range, all labeled by their collectors as truncatula. In the 90-93% similarity range there were 26 sequences, including one truncatula, all five cousini, all four humilis, all three shirazensis, six (of eight) viator/viatrix, three (of the seven) neotropica, and four unidentified.

Querying from humilis, the BLAST tool returned the three other humilis CO1 sequences in GenBank matching in the 99-100% range.  Matching in the 90-94% range were all 16 truncatula, all seven neotropica, all five cousini, all three shirazensis, two (of the five) cubensis, and the four unidentified.

Looking down from cubensis, BLAST returned 15 sequences in the 95-100% similarity range: the other four cubensis, six (of the seven) neotropica, four (of the eight) viator/viatrix, and the single bulimoides sequence [15] in the database.  In the 90-94% range were just eight sequences: the other four viator/viatrix, two (of 16) truncatula, one (of five) cousini, and one (of four) humilis.

So the bottom line is that fossarine populations called truncatula in Europe and humilis in North America demonstrate the same level of sequence divergence we have observed between populations of L. stagnalis universally considered conspecific on both continents.

Then if one considers those 16 + 4 sequences together, there is some evidence suggesting that humilis/truncatula may be conspecific with the cubensis-type nomina shown red in the figure above, if one thinks of humilis/truncatula and cubensis as inhabiting separate continents.  Some of the 21 cubensis-type sequences demonstrate divergence in the 5-10% range from the 20 humilis/truncatula sequences, others are more divergent.  But if one thinks of both humilis and cubensis as sharing a continent, which I suppose I do, then one probably ought to interpret the relationships depicted above as supporting the two-species model, weakly.

In any case, the present analyis contains very little evidence supporting any of the other nominal species shown in the figure above, expecially bulimoides [15], neotropica, and viator/viatrix, all of which demonstrate less than 5% sequence divergence from cubensis.  This introduces the further complication that D’Orbigney’s 1835 nomen viator is an older name than Pfeiffer’s 1839 cubensis.  I would change the name at the top of the FWGNA page from cubensis to viator if I believed in DNA sequence data, which I do not.

Correa and colleagues [4] go beyond believing in sequence data to a belief in gene trees, a strict and demanding faith indeed.  While concurring with us that cubensis, neotropica, and viator/viatrix appear conspecific, their 2011 analysis suggested to them as many as five “species” of fossarines: truncatula, humilis, cubensis, cousini, and (surprise!) a new species from Columbia and Venezuela, which (I feel sure) will reach description soon.  They concluded “that conchological and anatomical characters are uninformative [13] to identify closely related species of Lymnaeidae, and that DNA-based approaches should be preferred.”

Yes, trying to advance the ball downfield entirely by head-butting will rarely score points, and so the foot should be preferred.  Or, how about using our hands?

As far as I can determine, nobody has ever tried to rear any New World population of fossarine snails in culture, much less gather the first datum on their mating system.  Several excellent studies of European truncatula have returned evidence of preferential self-fertilization [14], but I am not aware of any study involving humilis, cubensis, or the scores of genetically similar nominal species of the Americas, temperate or tropical.  So big international research teams continue to fill the journals with forests of gene trees, while simple questions about the basic biology of the snails themselves go unaddressed.  Such is the sad state of The Lymnaeidae, 2012.

Notes

[1] The Lymnaeidae 2012: Stagnalis yardstick [4June2012]

[2]  The Classification of the Lymnaeidae [28Dec06]

[3] Come on, guys!  In the entire sample of 51 taxa analyzed by Correa et al (2010), only two have ever been demonstrated refractory to infection by Fasciola.  Susceptibility is generally distributed all over the entire lymnaeid phylogeny.  Look at the little colored balls here: [Correa 2010 tree]

I hate to be cynical, but it's hard to see how research in this direction is going to solve the global fascioliasis problem.

[4] Correa, A.C., J.S. Escobar, O. Noya, L.E. Velasquez, C. Gonzalez-Ramirez, S. Hurtrez-Bousses & J-P. Pointier (2011)  Morphological and molecular characterization of Neotropic Lymnaeidae (Gastropoda: Lymnaeoidea), vectors of fasciolosis.  Infection, Genetics and Evolution 11: 1978-1988.  [Open Access]

[5] Photo taken in September of 2008 at a muddy pool in Owego, NY, the type locality of Lymnaea humilis.

[6] The classification of the Lymnaeidae adopted by Burch for his (1989) "North American Freshwater Snails" was a modification of the system developed by Baker (1911, 1928).  For more background, see my post of [28Dec06].

[7] Malacological Mysteries I: The type locality of Lymnaea humilis [25June08]

[8]  This transaction may have led, in some complicated way, to an error in the 2010 paper by Correa et al.  In her Table 1, Correa gave the collection locality for Lymnaea humilis as "USA, Charleston (South Carolina)."  No, the three GenBank accession numbers she cited all corresponded to the sequences Bargues & Mas-Coma obtained from my samples of Owego, New York [10].  There are no L. humilis populations in Charleston!  That was the entire point of my 25June08 essay.

I understand that the North American situation regarding cubensis and humilis is confusing.  But it troubled me to discover that the single fact about which I had any independent information in the Correa 2010 paper was completely bass-ackward wrong.

[9] Bargues, M.D., P. Artigas, R.L. Mera y Sierra, J.P. Pointier & S. Mas-Coma (2007)  Characterisation of Lymnaea cubensis, L. viatrix and L. neotropica n. sp., the main vectors of Fasciola hepatica in Latin America, by analysis of their ribosomal and mitochondrial DNA.  Ann. Trop. Med. Parasitol. 101: 621-641.

[10] Bargues, M.D., P. Artigas, R.T. Dillon & S. Mas-Coma (unpubl.) Molecular characterization of Lymnaea humilis (= L. modicella), a major fascioliasis vector in North America, and evaluation of the usefulness of nuclear rDNA and mtDNA markers for Lymnaeidae.

[11] Although there were quite a few truncatula sequences in GenBank, most authors gave no data on collection locality, which as I noted in June, drives me nuts.  Albrecht and colleagues [12], thank heaven, reported their collection site as "Germany: Thuringia, Erfurt-Bindersleban, spring of Nesse River."  I have no idea how close this might be to the actual type locality, given by Muller as "Thangelstedt, near Weimar, Germany," but we'll make it do.

[12] Albrecht, C.,  C. Wolff, P. Gloer & T. Wilke (2008)  Concurrent evolution of ancient sister lakes and sister species: the freshwater gastropod genus Radix in lakes Ohrid and Prespa.  Hydrobiologia 615: 157-167.

[13]  The Correa et al. 2011 paper also included a nice dataset on penial morphology, but really very little on the shell - just simple length and width.  And none of the European workers ever seem to examine radular morphology.  I have no idea why not.

[14] Meunier, C., S. Hurtrez-Bousses, R. Jabbour-Zahab, P. Durand, D. Rondelaud & F. Renaud (2004)  Field and experimental evidence of preferential selfing in the freshwater mollusc Lymnaea truncatula (Gastropoda: Pulmonata).  Heredity 92: 316-322.  Trouve, S., L. Degnen, F. Renaud & J. Goudet (2003)  Evolutionary implications of a high selfing rate in the freshwater snail Lymnaea truncatula.  Evolution 57: 2303-2314.

[15] Note added 13Feb24.  The "single bulimoides sequence" referred to above is spurious, and Lymnaea bulimoides is not a junior synonym of L. cubensis/viator.  For more, see:

• What is Lymnaea bulimoides [13Feb24]

The Lymnaeidae 2012: A clue

Editor's Note. This essay was subsequently published as Dillon, R.T., Jr. (2019b)  The Lymnaeidae 2012: An important stipulation.  pp 45-50 in The Freshwater Gastropods of North America Volume 2, Essays on the Pulmonates.  FWGNA Press, Charleston.

Plasticity of shell phenotype is such a pervasive phenomenon in our area of research that the topic has become a regular category label on this blog, with nine posts to date and climbing.  We've seen quite a few excellent laboratory studies over the years, beginning with Arthur (1982) on Lymnaea stagnalis and including notable contributions by Lam & Calow (1988) on L. peregra,  DeWitt (1998) and Auld & Relyea (2011) on Physa, Hoverman & Relyea (2007) on Helisoma, Holomuzki & Biggs (2006) on the hydrobiids, and Urabe (1998) and Krist (2002) on the pleurocerids [1].   I've reached a point that I now take the phenomenon for granted.

So, looking back on my posts of April and May regarding the “stagnicoline” lymnaeids of North America [2], I skipped as lightly through the "5 nominal species in the dark-skinny elodes group and 16 nominal species in the pale-broad catascopium/emarginata group" recognized by Burch [3] as I did through the “14 dark, skinny marsh-dwellers and 25 pale, fat river & lake-dwellers” recognized by Baker [4], taking for granted that essentially all of the shell and body color variance upon which this elaborate taxonomy has been hung since the 19th century must be attributable to phenotypic plasticity.  The only question in my mind was whether there might be some cryptic species hiding underneath the phenotypic noise.  About which, I concluded in May, "I just don't think we here in North America have ever caught a clue."

That was hyperbole.

Of course there must be a genetic component to shell morphology, and of course shell morphology must give us some information about the evolution of the snails bearing them.  Reared in a common environment, lymnaeids, planorbids and physids do not converge on a single dextro-sinistro-planospiral axis of coiling.  Indeed, natural selection is only effective on the component of the variance that is heritable.  If all that shell variance Bengt Hubendick so treasured in the lymnaeid populations of Europe were simply ecophenotypic responses to current or substrate or predation, selection would grind to a halt just as surely as if no variance existed at all.

Thus the paper published late last year by Christer Brönmark and his colleagues at the University of Lund [5] arrives as an especially welcome addition to the worldwide research program on freshwater gastropod evolution.  For here we see an elegant demonstration not just that the shell morphology of lymnaeid snails is subject to great phenotypic plasticity, but also that after all the environmental component of the variance is boiled away, at least some genetic component remains.

Brönmark opened his paper with a demonstration that Swedish populations of Lymnaea peregra/balthica [6] wild-collected from ponds with molluscivorous fish tend to bear lower spired, more rounded shells than populations inhabiting fishless ponds.  He then sampled snails from four ponds with fish and five fishless ponds and reared their three-week hatchlings (20 hatchlings per population) in two treatments for 12 weeks, with fish and without.  When measured on the first principal component of shell morphology (71% of the variance) the progeny of all nine populations responded identically – slender shells in the absence of fish predation and rounded shells in the presence [Figure (a) above, Note 7].  But on the second PC (8% of the variance) the two groups responded differently to the absence of fish; populations originating in ponds with fish (filled diamonds in figure b) developing significantly wider second whorls than populations from fishless ponds (open squares).

I wish that Brönmark’s paper had come to my attention a couple months ago.  He and his colleagues have offered us a lovely demonstration of apparently heritable and adaptive differences in shell morphology among conspecific populations of lymnaeids separated not by any great distances or barriers, but simply by their selection regimes.  Such a phenomenon can easily explain the observations of Turner & Brady I featured in May, without resorting to a hypothesis of cryptic speciation.  There may be something to that Darwin stuff, after all.

Notes

[1]  These are some of my favorite laboratory studies of shell phenotypic plasticity in freshwater snails.  By no means an exhaustive list:  Arthur, W. (1982) Control of shell shape in Lymnaea stagnalis. Heredity 49:153-161.  Auld, J. & R. Relyea (2011) Adaptive plasticity in predator-induced defenses in a common freshwater snail: altered selection and mode of predation due to prey phenotype.  Evol. Ecol. 25:189-202.   DeWitt, T. (1998) Costs and limits of phenotypic plasticity: Tests with predator-induced morphology and life history in a freshwater snail.  J. Evol. Biol. 11:465-480.  Holomuzki, J. & B. Biggs (2006) Habitat-specific variation and performance trade-offs in shell armature of New Zealand mudsnails.  Ecology 87:1038-1047.  Hoverman, J. & R. Relyea (2007) The rules of engagement: how to defend against combinations of predators.  Oecologia 154:551-560.  Krist, A (2002) Crayfish induce a defensive shell shape in a freshwater snail.  Invert. Zool. 121:235-242.  Lam, P. & P. Calow (1988) Differences in the shell shape of Lymnaea peregra (Muller) (Gastropoda: Pulmonata) from lotic and lentic habitats; environmental or genetic variance?  J. Moll. Stud.  54:197-207.  Urabe, M. (1998) Contribution of genetic and environmental factors to shell shape variation in the lotic snail Semisulcospira reiniana (Prosobranchia: Pleuroceridae).  J. Moll. Stud. 64:329-343.

[2] The Lymnaeidae 2012: Tales of L. occulta [23Apr12]

The Lymnaeidae 2012: Tales from the cryptic stagnicolines [10May12]

[3] Burch, J. B. (1989) North American Freshwater Snails. Hamburg, MI: Malacological Publications.

[4] Baker, F. C.  (1911) The Lymnaeidae of North and Middle America, Recent and Fossil. Special Publication, no. 3. Chicago: Chicago Academy of Natural Sciences.

[5]  Brönmark, C., T. Lakowitz, and J. Hollander. 2011. Predator-induced morphological plasticity across local populations of a freshwater snail. PLoS ONE 6 (7):e21773.  [Open access]

[6]  Some European authorities have recently resurrected the Linnean nomen “balthica” to apply to the snail everybody for 200 years has called L. peregra, despite the fact that Linnaeus (1758) gave the habitat of his Helix balthica as the littoral zone of the Baltic Sea.  Since Linnaeus used the genus Helix for land snails, my guess would be that balthica was probably what we today call a Littorina.   Hubendick simply dismissed the nomen as, “Probably no Lymnaea.”   But you be the judge:  "H. testa imperforata ovata acuminata, rugis elevatis, apertura ovata amplicata."  (Systema Naturae pg. 775).

[7] This is the left half of Figure 2 from Brönmark et al. (reference above).  "Reaction norms of shell morphology in Radix balthica from the common garden experiment."

The Lymnaeidae 2012: Stagnalis yardstick

Editor's Note. This essay was subsequently published as Dillon, R.T., Jr. (2019b)  The Lymnaeidae 2012: Stagnalis yardstick.  pp 51-56 in The Freshwater Gastropods of North America Volume 2, Essays on the Pulmonates.  FWGNA Press, Charleston.

Bengt Hubendick was a genius in the way Picasso was a genius.  It’s not that he didn't make mistakes.  They just didn't matter, because that wasn't the point.

At left [1] is a “mean photograph” of Lymnaea peregra from Hubendick’s 1951 monograph.  Here he has photographed 20 shells from a single population in Sweden, overlain the negatives, and developed a single print.  Hubendick’s point here is variance.  Variance is the stuff of evolution.

And what has become of our science today?  In April [2] we touched briefly on the 2010 paper by Ana Correa and her colleagues, synthesizing 15 years of research on molecular evolution in the Lymnaeidae [3].  Essentially every one of the 53 tips on Correa’s tree was labeled with a different specific nomen. There was no estimate of intraspecific sequence variance whatsoever.

Nor am I able to find any such estimate anywhere in the entire heap of 21 papers on lymnaeid molecular phylogenetics stacked like cordwood on my desk this afternoon [4].  All 21 seem to adhere strictly to what might be called the “U1s2nmt3 Rule.”  Workers usually sequence one individual per population, sometimes two, and never more than three.  And they usually sequence one population per nominal species, sometimes two, and never more than three.  Apparently there has been some international conference of bonehead tree jocks where a U1s2nmt3 Rule was proposed and adopted without debate, to which I was not privy.

But gene trees are (at best) weak, null hypotheses of population relationships [5].  They require control and calibration, no different from any other measurement technique in the toolbox of evolutionary biology.  When applied to estimate the genetic relationships among a set of populations unknown to us, we first need an estimate of the variance within populations, and then between populations within species.

So in April I asked the rhetorical question, “Do we know enough about the biology of the lymnaeid snails to make sense out of all the sequence data published in recent years by Remigio, Bargues, Mas-Coma, Pfenninger, Streit, Jarne, Pointier, and others?”  The answer is, “Maybe we know enough about Lymnaea stagnalis.”

Back in the Glory Days of the Modern Synthesis, Hubendick suggested that the lymnaeid fauna of North America might share as many as three species with that of Europe. And much less problematic than L. palustris, about which we have obsessed during the months of April and May, was Lymnaea stagnalis.

Lymnaea stagnalis is such a striking snail that there has apparently never been any question, from the birth of American malacology to the present day, that the big honkin’ lymnaeids with the concave apex and the flaring lip crawling around in our northern lakes must match the big honkin’ lymnaeids with the concave apex and the flaring lip crawling around in lakes throughout northern Europe.

In the 20^th Century L. stagnalis became a popular laboratory model for neurobiologists, parasitologists, and physiologists of all stripes, to the point that my simple search of the NCBI PubMed database (for example) yielded 1,344 hits.  Lymnaea stagnalis may surpass Biomphalaria glabrata (1,222 hits) for the mantle of “best known freshwater gastropod.”

So I went fishing in GenBank for L. stagnalis sequences in an effort to calibrate the Correa gene tree.  My initial hope was to analyze the same set of genes used by Correa and colleagues – 16S, ITS1 and ITS2 – but I found no ITS sequences for L. stagnalis from the American side of the pond.  The eight sequences for 16S in GenBank (from four sources) included four Canadian and four European, I think [6], but there were some irregularities in those data, which gave me pause.

The best dataset in GenBank seemed to be that for CO1, in any case, with four Canadian and eight European sequences from six different sources, all over 600 bp in length, so that’s what I focused on.  The figure above shows a neighbor-joining tree based on simple percent sequence differences among four CO1 sequences from Manitoba, six from Germany (I think) and one each from Sweden and France (Click for larger).  The scale bar is a bit misleading, but divergence within continents ranged up to about 5%, with divergence values between continents in the 7-9% range.

That’s sort-of consistent with the 16S situation, but the 16S sequences were only in the 400-450 bp range, and the divergence didn’t look nearly as clean as in the CO1 data I’ve figured.  The GenBank accessions suggested that Correa and colleagues may have obtained a 16S sequence in an L. stagnalis sampled from France that matched one of Remigio’s Manitoba sequences at 100%.  Meanwhile the maximum divergence across the whole set of eight was between Remigio’s Canadian and Italian sequences, at 13%.

In any case, if we re-examine the Correa tree using 5% expected sequence divergence within-continent [4] and 10% between, we obtain the groupings I’ve labeled on the right margin in the figure below (Click for larger).  From North America (that yellowish color in Correa’s figure, hard to distinguish) we see one group comprising nominal catascopium, emarginata, elodes and the “occulta” sample from Poland we mentioned in April.  We also note that individual samples of caperata, megasoma, and columella were distinctive – no surprises there.  And there’s evidence for a “Radix” population up in Canada matching Eurasian luteola – that’s interesting.

The two other North American groups suggested by Correa’s gene tree include the little mud-dwelling lymnaeids we here tend to call “fossarines.”  The situation with L. humilis and L. cubensis will, I think, bear closer examination.  But I’m clean out of patience with this subject for today, and I suspect the attention of my readership may be wearing thin as well.  So let’s sign off with what should be a standard disclaimer for inquiries of this sort.

A species is a population or group of populations reproductively isolated from all others.  Gene trees may or may not reflect reproductive isolation [7].  So the N = 8 groups (and N = 11 singletons) I have marked on Correa’s gene tree are not “species,” even though I have labeled them that way.  There’re just gene sequences.  More about which next time…

Notes

[1] Plate 2, Figure 3 from Hubendick, B. (1951)   "Recent Lymnaeidae, Their Variation, Morphology, Taxonomy, Nomenclature and Distribution.  Kungl. Svenska Vetenskapskademiens Handlingar. Fjarde Serien Band 3. No. 1. Stockholm: Almquist & Wiksells Boktryckeri AB.

[2] The Lymnaeidae 2012: Tales of L. occulta [23Apr12]

[3] Correa, A. C., J. S. Escobar, P. Durand, F. Renaud, P. David, P. Jarne, J-P Pointier, and S. Hurtrez-Bousses (2010)  Bridging gaps in the molecular phylogeny of the Lymnaeidae (Gastropoda: Pulmonata), vectors of fascioliasis.  BMC Evolutionary Biology 10: 381.  Open access here: [html]

[4] In fairness, Correa and colleagues (Infection, Genetics & Evolution 11: 1978-1988) published a “DNA barcoding analysis” in 2011 similar in spirit to the L. stagnalis study I have developed above.  Their combined analysis of sequence divergence across multiple studies and multiple species yielded a “barcoding gap” (presumably marking the boundary between intraspecific and interspecific variability) around 6%, quite consistent with my within-continent estimate.  Correa et al. (2011) did not examine an intercontinental subset, however.

[5] Gene Trees and Species Trees [15July08]

[6] Most of the sequences I inspected in GenBank were missing locality data! A few authors supplied information regarding the site of collection in the “source” field.  But most just entered “source = mitochondria.”  Duh.

[7] What is a Species Tree?  [12July11]
